Bucket Elevator

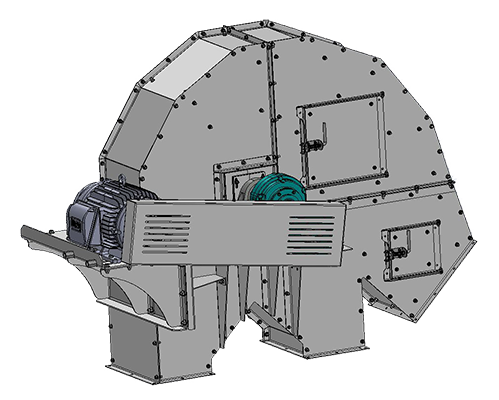

HEAD SECTIONS
Heads are designed with clean centrifugal discharge including:
• Heavy duty Crown faced double disc drum pulley with vulcanized rubber or replaceable slide lagging
• Medium duty pillow block bearings
• Inspection doors with hinges and clamps, weather tight
• Engineered and machined steel shafts
• Adjustable discharge baffle plate
• Split hood with shaft seals for ease on maintenance
DRIVES
• Standard class 2 Shaft Mount Reducer with belt drives
• OSHA Guard
BELT & BUCKETS
• Heavy duty supreme oil resistant (S.O.R.) rubber belt engineered to suit the correct requirements for the application.
• All buckets based on the application and customer preference.
• All hardware options are available per customer specifications
STANDARD FINISH OPTIONS (on all components)
• Galvanized

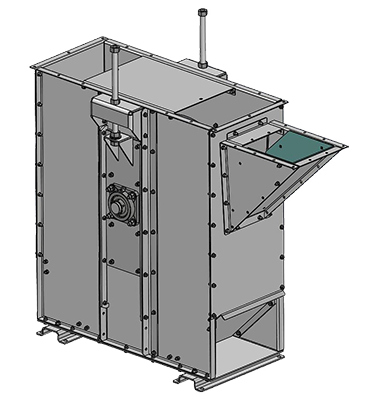

BOOT SECTION
• Heavy duty Crown faced double disc drum pulley
• Bolted construction
• Flange bearing
• Heavy duty threaded rod for screw take up belt tensioning
• Inspection doors with hinges and clamps, weather tight
• Inspection doors with heavy duty hinges and clamps, weather tight
• One standard inlet
• Heavy duty drum or wing style pulley
LEG TRUNKING
• Fully seal welded on a laser aligned jig to ensure strength and resistance to weather conditions
• Standard Heavy duty construction
• Standard 10’ -0” trunking sections
• Structural angle iron end flanges, Horizontal tie angles and cross bracing
• Heavy duty inspection trunking with large service and maintenance doors front and back
STANDARD MAINTENANCE ACCESS OPTIONS
• Ladders and safety cages
• Head Service platforms
• Distributor platforms
• Step off and rest platforms
Safety and Monitoring sensors are available to suit your specifications and application
